The Ultimate Guide to Spooling Wire Rope on Winch Drum

Many mechanics still swear by steel cable, asserting it’s the only rope robust enough for a demanding pull. However, this belief overlooks a crucial fact: a properly spooled synthetic line not only weighs a mere fraction of metal cable but also completely eliminates the deadly snap‑back risk that often causes injuries during recovery operations. Imagine replacing 55 kg of heavy iron with a 12 kg Dyneema strand, allowing your winch to operate with less strain. In the following sections, we will reveal exactly how to make this efficient and safe transition seamlessly.

Installing Wire Rope on Winch Drum: Preparation and Safety

Before any rope touches the drum, a clean and organised workspace is vital for a safe installation. Neglecting proper preparation is a fast track to potential damage, especially when handling high‑strength synthetic lines, which can cut sharply if they slip. Let’s walk through the essential safety gear and the precise steps required to attach the rope securely.

With your personal protective equipment in place, you can now focus on the actual connection. The following guide answers the common query, “How to attach rope to a winch drum?” and serves as a quick‑reference checklist during the installation process.

Once the rope is securely fastened and the pull test confirms its solid hold, you have successfully completed the critical first part of installing your rope on the winch drum. The next logical step is to consider how you will wind the line. Mastering the technique of spooling wire rope on a winch drum will keep your system operating efficiently and significantly extend the rope’s service life.

Spooling Wire Rope on Winch Drum: Direction, Tension, and Layer Management

Now that the rope is firmly attached to the drum, the more intricate work begins – getting the line onto the drum in a manner that protects the rope and ensures the winch runs smoothly. Mastering the correct spooling technique will not only boost efficiency but also add years to your rope’s service life.

When you encounter the question, “Does winch cable go over or under spool?” the definitive answer is: **under the drum**. This “under‑wound” method aligns the rope’s natural lay with the drum’s rotation. It minimises side‑load and prevents the rope from digging into the drum’s flange, a common issue which leads to premature wear. Conversely, over‑wound spooling forces the rope to wrap against its natural direction of travel, which accelerates abrasion and can cause the rope to kink severely under load.

Maintaining proper tension is simpler than it sounds. After ensuring the initial few wraps have 2% of the rope's breaking strength, apply a steady pull of approximately 1,000 lb (≈ 454 kg). This is a widely recommended load for setting a new synthetic line. Continue winding, keeping the rope snug throughout the process. A hand‑held tension gauge or even a skilled “feel‑the‑resistance” method can work effectively. The main objective is to avoid any slack that could allow subsequent layers to sit unevenly, which compromises the rope’s structure and increases wear.

Layer management follows this same fundamental principle: each new wrap should sit directly alongside the previous one, without overlapping or leaving any gaps. Visualise a razor cleanly shaving a perfectly even strip; this mental image helps you keep the rope’s edge tight against the drum’s groove. If you notice a kink beginning to form, stop immediately, unwind the rope back a few turns, and carefully re‑align it before proceeding. This consistent attention to detail prevents premature abrasion and stops the rope’s core from twisting, ensuring its integrity.

By consistently keeping the rope under‑wound, applying a measured initial load, and carefully watching each layer sit perfectly in line, you will observe the winch drum turning more quietly and the rope staying true to its designed strength. This disciplined approach lays a solid foundation for our next topic – how a drum’s design can further protect both synthetic and wire ropes.

Winch Cable Drum: Design Considerations for Synthetic and Wire Ropes

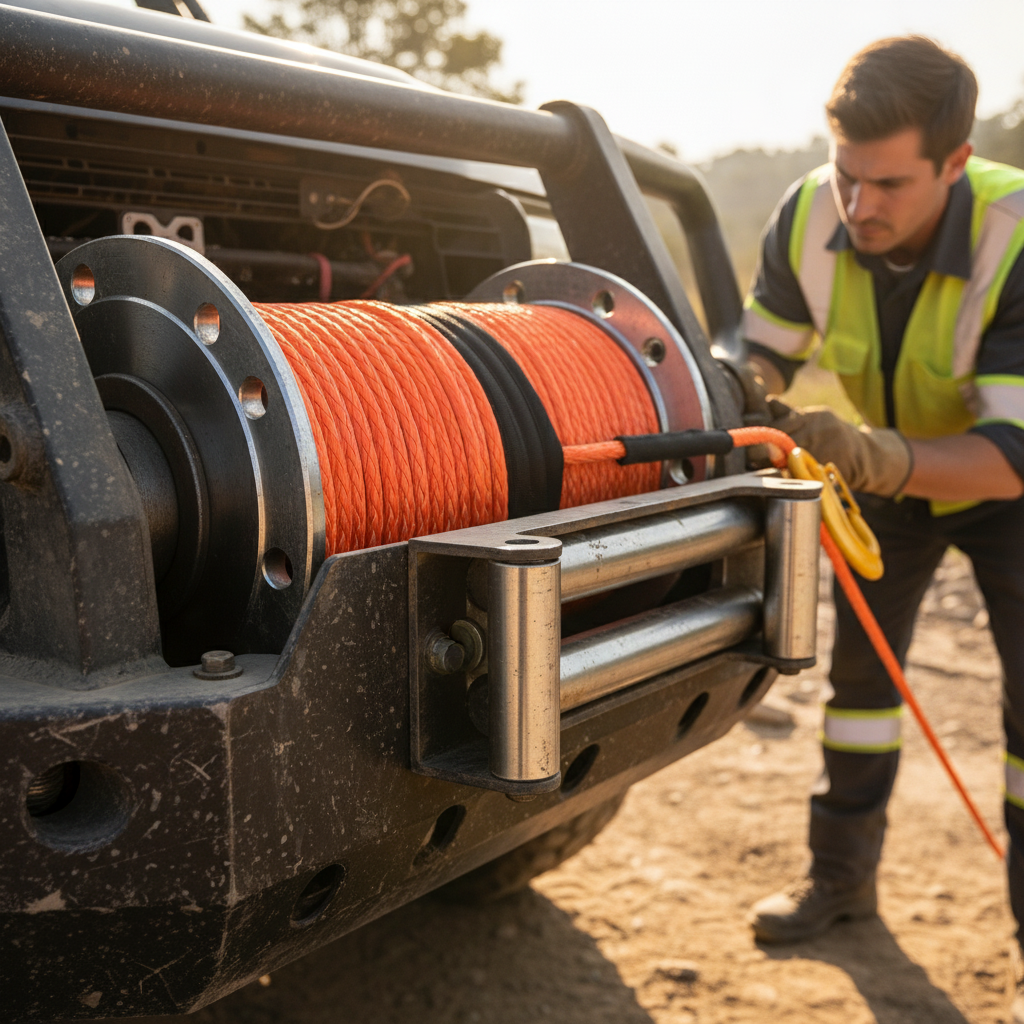

Now that you’ve mastered the under‑wound spooling technique, the next critical factor determining your line’s longevity is the drum itself. A well‑designed winch cable drum effectively protects the rope from abrasion, limits side‑load, and keeps the line perfectly aligned with the fairlead. Let’s examine the three geometric features that make the most significant difference.

The groove profile serves as the rope’s first line of defence. A deep, V‑shaped groove securely captures each wrap, preventing the rope from slipping sideways. Wide flanges ensure the line has ample room to sit without being crushed against the drum hub, while a highly polished bearing surface significantly reduces friction as the drum rotates. When any of these dimensions are even slightly off‑spec, you will notice premature wear, particularly on synthetic fibres, which are more sensitive to surface abrasions.

Addressing the common query, “Which direction do you spool wire rope on a drum?” – you should initiate the line at the bottom edge of the drum and allow it to wind upward, always following the rope’s natural lay. Feeding from the lower side keeps the strands correctly aligned with the drum’s rotation, thereby eliminating the reverse‑bending that often creates damaging kinks in the rope.

Because synthetic and wire ropes behave distinctly, the same drum design can favour one material over the other. Synthetic lines perform best on a smooth, low‑friction surface; any roughness or sharp groove edges can cause chafe, substantially shortening their life. Wire rope, with its stronger steel strands, tolerates a slightly coarser profile but still greatly benefits from a consistent wrap angle to avoid side‑load pressures that would otherwise flatten and weaken the strands.

Finally, a small but often overlooked step is ensuring correct alignment between the drum and the fairlead. If the fairlead is positioned too low or too high, the rope will bend in the opposite direction as it exits the drum – a specific condition known as reverse bending. This creates a concentrated stress point that can severely damage the line after only a few cycles of use.

Before you tighten the first lock, take a moment to confirm that the fairlead perfectly lines up with the drum’s centreline. A quick visual cue – if the rope exits the drum in a straight line towards the fairlead without any obvious angle – confirms correct alignment. With the drum geometry properly tuned and the fairlead precisely set, you are now ready to enjoy the full durability benefits of either synthetic or wire rope on your winch cable drum.

Choosing Between Wire and Synthetic Rope: Benefits, Maintenance, and iRopes Solutions

With the drum geometry now optimised, the next crucial decision lies with the rope material itself – a choice that directly impacts critical factors like weight, overall safety, and long‑term operational costs.

Before putting your winch to full work, a short break‑in sequence is essential to properly set the rope’s memory. For the initial ten turns, pull the line to approximately 20% of its rated load. Following this, increase the tension to about 1,000 lb (≈ 454 kg) for the next thirty wraps. After this initial tensioning and use, carefully inspect the drum for any stray fibres and wipe the surface with a damp cloth to remove any accumulated grit or debris.

During routine checks, if you observe uneven layers, a kink, or any surface abrasion, immediately stop the winch. Unwind the affected section and then re‑spool it, strictly adhering to the under‑wound method described earlier. Re‑tightening the initial load typically corrects spooling memory errors. However, a damaged synthetic strand should always be replaced rather than repaired, as even a single compromised fibre can significantly reduce the overall strength and reliability of the rope.

Armed with the right material and a robust maintenance plan, you are now ready to fully benefit from the efficiency gains discussed in our final thoughts.
